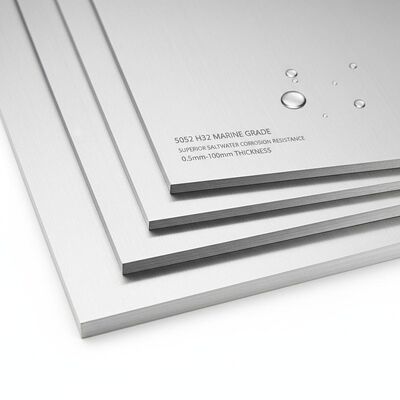

5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance

  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
  • 5052 H32 Marine Grade Aluminum Sheet Plate with 0.5mm-100mm Thickness for Superior Saltwater Corrosion Resistance
Τόπος καταγωγής Shandong, Κίνα
Μάρκα Hongtu
Πιστοποίηση ISO 9001:2015, SGS, DNV, ABS (upon request)
Αριθμό μοντέλου 5052-H32
Ποσότητα παραγγελίας min 500 κιλά
Τιμή USD 2.6-3.8 / kg
Συσκευασία λεπτομέρειες Αντισκωριακό χαρτί παρεμβλημένο, τυλιγμένο φιλμ PE, ξύλινη παλέτα ποιότητας εξαγωγής με χαλύβδινο λο
Χρόνος παράδοσης 3-5 εργάσιμες ημέρες για το απόθεμα, 10-20 ημέρες για την παραγωγή
Όροι πληρωμής T/T, L/C, PayPal, Western Union
Δυνατότητα προσφοράς 3000 τόνοι το μήνα
Λεπτομέρειες
Κράμα 5052 Ιδιοσυγκρασία Η32, Η34, Η36, Η38, Η112
Πάχος 0.5mm - 100mm Πλάτος 1000mm, 1250mm, 1500mm, 2000mm
Μήκος 2000mm, 2440mm, 3000mm, 6000mm ή Προσαρμοσμένο Πρότυπο ASTM B209, EN 485, GB/T 3880
Φινίρισμα επιφάνειας Φινίρισμα Μύλου, Ανοδιωμένο, Επικαλυμμένο, Ανάγλυφο Αντοχή σε εφελκυσμό 210 - 260 MPa
Δύναμη διαρροής ≥ 160 MPA Επιμήκυνση ≥ 7-12%
Εφαρμογή Θαλάσσια σκαριά, καταστρώματα σκαφών, δεξαμενές καυσίμων, σκάφη πίεσης
Επισημαίνω

5052 H32 Marine Aluminum Sheet

,

Boat Building Aluminum Plate 5052

,

Corrosion Resistant Marine Grade Alloy
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
5052 H32 Marine Grade Aluminum Alloy Sheet Plate
The 5052 H32 aluminum alloy sheet is the industry-standard marine grade aluminum, offering the highest strength in the non-heat-treatable 5000 series. With exceptional corrosion resistance in saltwater environments and excellent formability, it is the preferred choice for boat building, marine structures, and fuel tank fabrication.
Key Features
  • Superior Saltwater Corrosion Resistance: High magnesium content (2.2-2.8%) provides outstanding protection against marine atmospheric corrosion
  • Excellent Weldability: Compatible with TIG, MIG and resistance welding with minimal strength loss in heat-affected zone
  • Good Formability: H32 temper offers an optimal balance of strength and workability for bending, deep drawing and stamping
  • High Fatigue Strength: Ideal for dynamically loaded marine structures subject to wave action
  • Non-Heat-Treatable: Strain-hardened temper provides consistent properties without heat treatment distortion
Chemical Composition (Weight %)
Element Si Fe Cu Mn Mg Cr Zn Al
Min - - - - 2.2 0.15 - Remainder
Max 0.25 0.40 0.10 0.10 2.8 0.35 0.10
Mechanical Properties (H32 Temper)
Property Value
Tensile Strength 210 - 260 MPa
Yield Strength ≥ 160 MPa
Elongation ≥ 7% (1.0-6.0mm), ≥ 12% (>6.0mm)
Hardness (Brinell) 60 HB
Density 2.68 g/cm³
Available Dimensions
Parameter Range
Thickness 0.5mm - 100mm
Width 1000mm - 2000mm
Length 2000mm - 6000mm or Custom
Temper H32, H34, H36, H38, H112, O
Applications
  • Boat hulls, decks and superstructures
  • Marine fuel tanks and water tanks
  • Dock ramps and floating platforms
  • Automotive fuel tanks and panels
  • Pressure vessels and chemical storage tanks
  • Electronic equipment chassis and panels
Our Advantages
  • Marine Certification Available: DNV, ABS and BV marine classification society certification upon request
  • Consistent Quality: ISO 9001:2015 certified production with full spectrographic and mechanical testing
  • Flexible Sourcing: Trial orders from 500 kg, full container loads available
  • Professional Export Packaging: Engineered to prevent moisture and physical damage during ocean freight
  • Inventory Advantage: Large stock of standard sizes for quick delivery within 3-5 working days
Inquire now for a tailored quotation, free sample, and expert technical support on 5052 H32 marine grade aluminum sheets.
